Expanded metal

Expanded metal can be made from a wide range of materials, chiefly expanded steel mesh, aluminum expanded metal mesh, expanded stainless steel, expanded nickel and other metal , as steel reinforcement materials in petroleum, chemical industry and building decorations. Thickness available from 0.5mm to 8mm.
Uses of Expanded Metal Mesh: Fencing for road, railway, civil building, water conservancy's construction; protecting of all kinds of machines, electrical equipment, window and aquatic product's breeding.

•

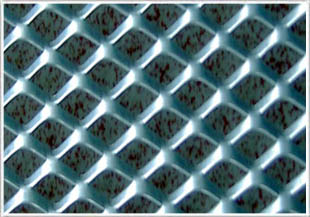

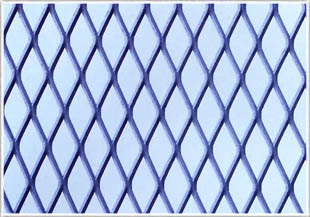

  Expanded metal
•

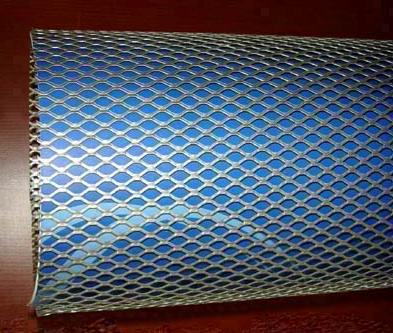

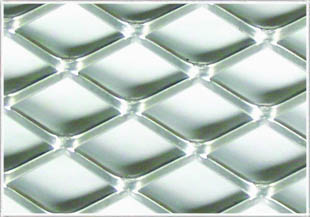

  Expanded metal
•

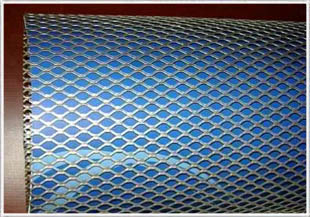

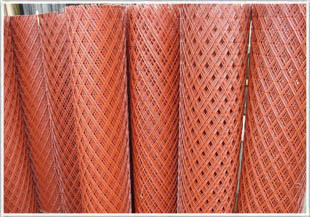

  Expanded metal
•

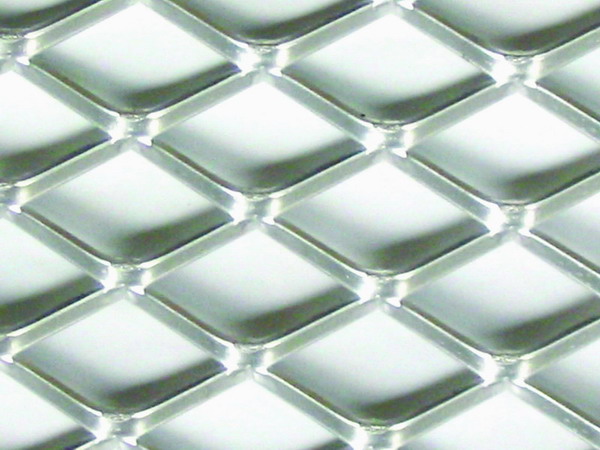

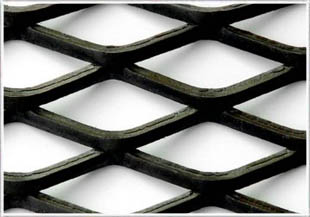

  Expanded metal
•

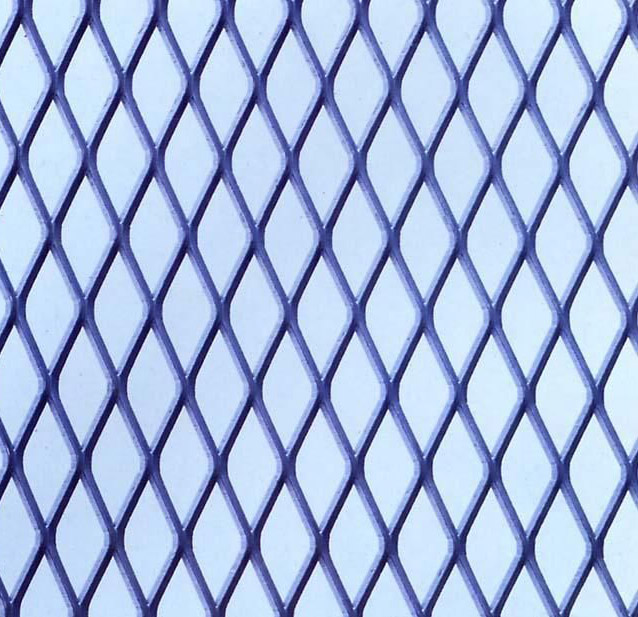

  Expanded metal
•

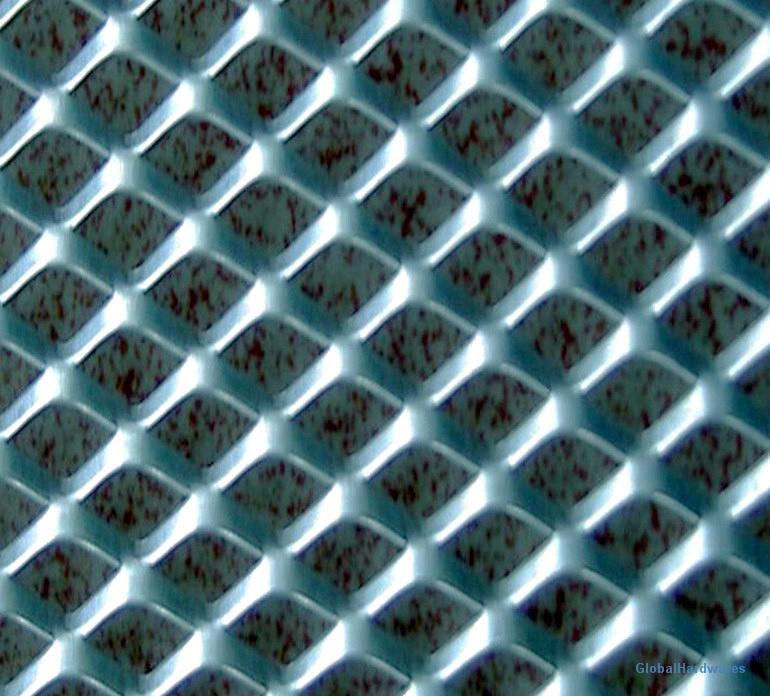

  Expanded metal

specifications				width (m)	length (m)	weight (kg/m2)
mesh thickness(mm)	distance short(mm)	distance long(mm)	strip(mm)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5.00
4	50	100	4	2	2	11.15
4.5	50	100	5	2	2.7	11.15
5	50	100	5	1.4	2.6	12.39
6	50	100	6	2	2.5	17.35
8	50	100	8	2	2.1	28.26
