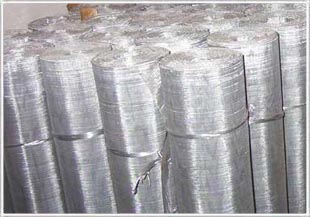

Window Screen

Window Screen is available in aluminum, galvanized, fiberglass, stainless, or epoxy coated. Small insects, such as no-see-ums, may pass through a typical window screen (18 x 14 mesh). Smaller meshes from 20 to 325 are available under woven wire mesh.
Window Screen is used to keep insects out of your house. There are many specialized types of screening to choose from. Most screening is aluminum or fiberglass. Standard widths range from 24" to 48", with 54", 60" and 72" available as special orders. Aluminum and fiberglass are rustproof and will last longer than galvanized screening under normal usage.


  • Window Screen

  • Window Screen

  • Window Screen

  • Window Screen

  • Window Screen

  • Window Screen

Specification List of Window Screen

Variety

Specification

Technical Notes

Mesh/Inch

Wire Gauge

Roll Size

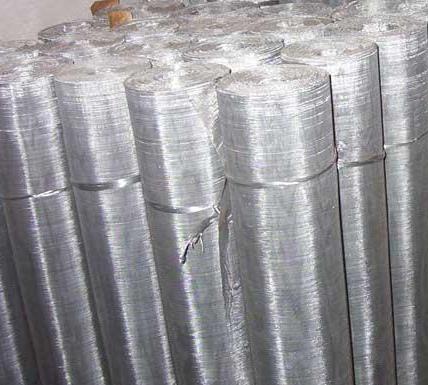

Gal.Iron window Screen

10 x 10mesh

BWG31
BWG32
BWG33
BWG34

3"x100"

4"x100"

1x25M

1.2x30M

1.5x25M

Process: Electric galvanized after weaving
Color: White or blue white

14 x 14mesh

16 x 16mesh

18 x 18mesh

18 x 14mesh

22 x 22mesh

24 x 24mesh

Enamelled Iron window Screen

Same as above

Green or dark green

Aluminum Alloy window Screen

Same as above

Material: Al-mg alloy or pure aluminum
Painted aluminum wire netting epoxy resin paint

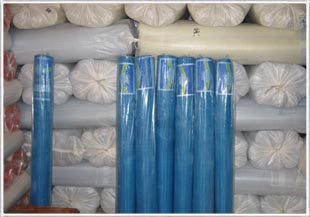

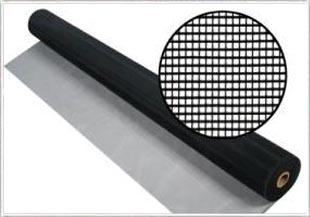

Fiberglass Screen



BWG31
BWG32

3"x100"
4"x100"
1x25M
1.2x25M

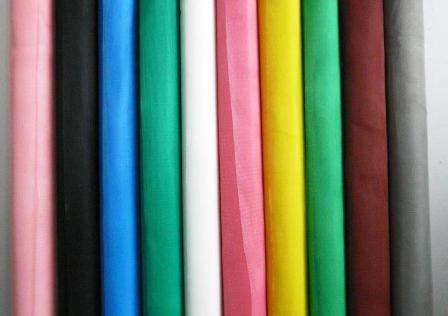

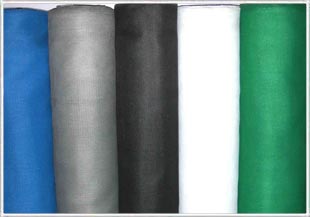

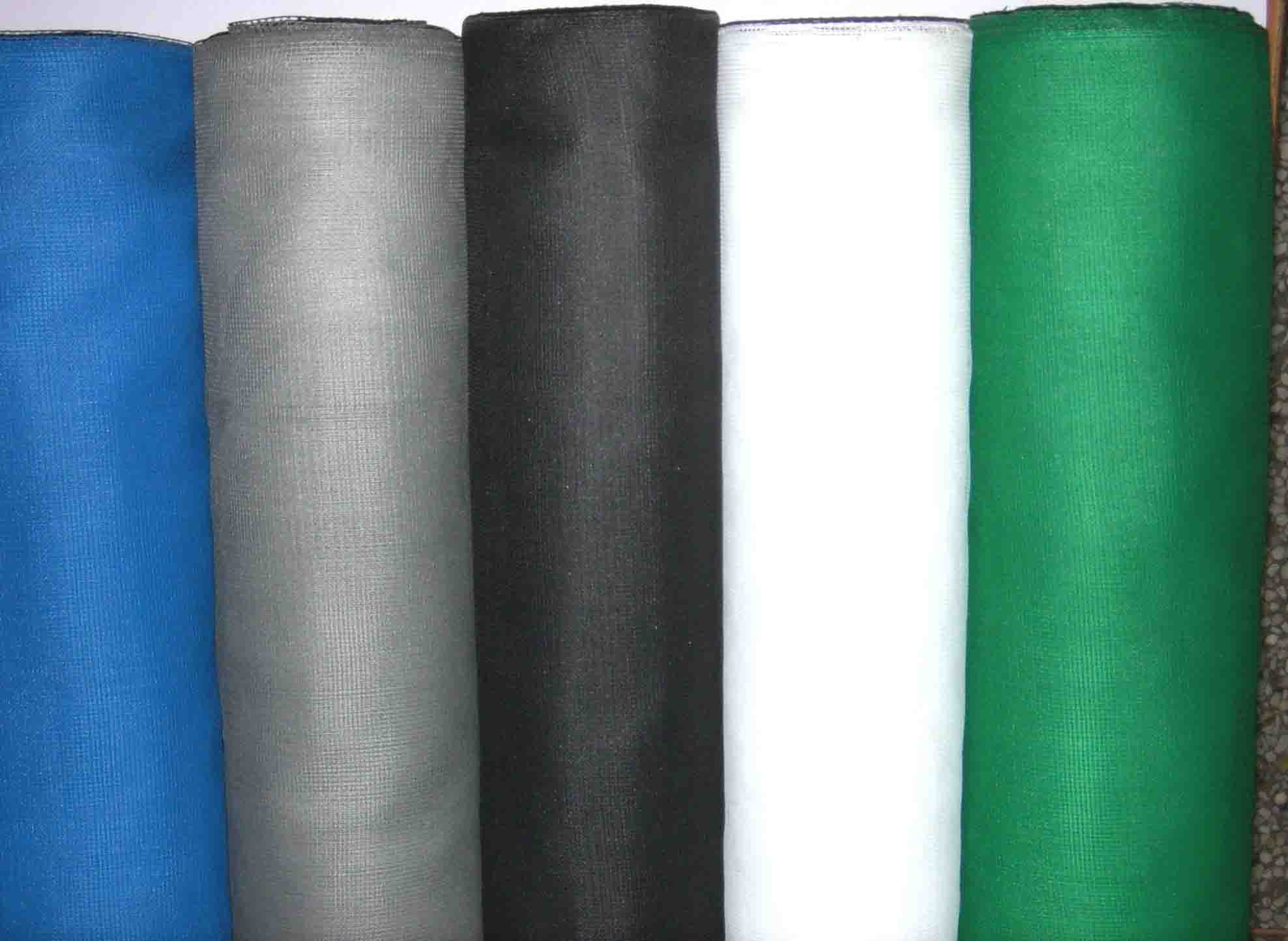

Available in different colors
Colors :white,blue,green,etc.

12 x 12

14 x 14

16 x 16

16 x 14

14 x 14

18 x 16

18 x 18

18 x 14

20 x 20

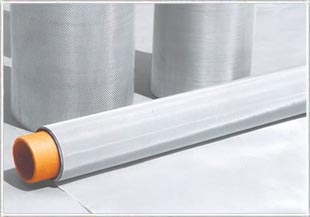

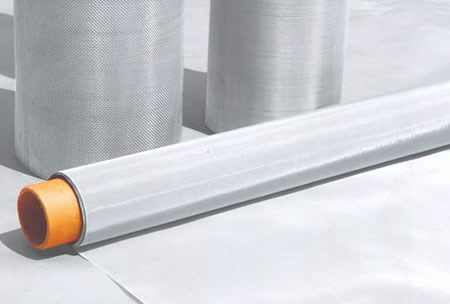

Stainless Steel window screen

14 x 14 SWG38
16 x 16 SWG37
18 x 18 SWG36
18 x 14 SWG35
20 x 20 SWG34

3"x100"
4"x100"
1x25M
1.2x25M

Materials: Stainless steel 304 304L 316 316L
